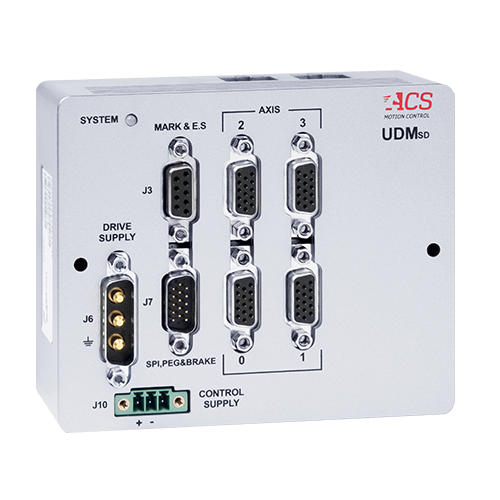

UDMsd
Up to 4 Axis Universal Drive Module
The UDMsd is designed to meet the needs of OEMs with demanding multi-axis motion control applications. Controllable by any ACS SPiiPlus Platform EtherCAT MainDevice, it leverages powerful servo control algorithms to maximize motion system performance. At the same time, its universal servo drive technology allows the system designer to control almost any type of motor or stage.
- Engineered for low-power motor and precision stage control
- Single connector for motor and encoder feedback
- Compact form factor
- Advanced control algorithms
- Drive Axes: 2 or 4
- Drive Supply Input: 12 – 48 Vdc
- Bus Voltage: Equal to Vin
- Max Current Output Per Axis: 2.5/5A
- Encoder Channels: Max 4 any combination (AqB – 4, Absolute – 2)
- Mounting: Panel, DIN rail
Reduce application development effort with these and other ACS capabilities
Motion Profile Generation
Increase machine throughput & accuracy with advanced profile generation algorithms
Motion-to-Process Synchronization
Increase machine throughput and resolution with events and high-speed I/O synchronized to motion
SpiiPlus Platform
The Universal Control Platform for Precision Motion Systems
The SPiiPlus Platform is an EtherCAT-based control platform consisting of motion controllers, servo drives, interfaces, and I/O built to meet the needs of OEM engineering teams developing equipment with precision motion control systems.
