SPiiPlusSC-HP
PC-Based Soft EtherCAT Master Motion Controller
The SPiiPlusSC-HP is designed for OEMs with demanding multi-axis motion control applications. Running in the host PC without additional hardware, SPiiPlusSC-HP provides high-speed shared RAM communication for data-intensive applications like high-speed vision SMT pick-place assembly equipment.
It leverages powerful application development capabilities and profile generation algorithms to reduce time to market and maximize motion system performance.

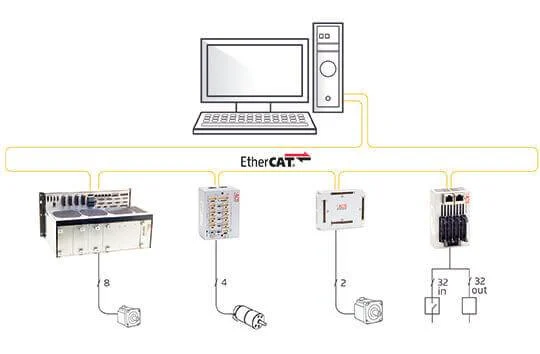

It can control ACS products in the SPiiPlus Motion Control Platform and 3rd party EtherCAT devices, providing flexibility for the motion control system designer.
- Rich host programming libraries
- Rich host programming libraries
- Flexible real-time programming
- Advanced profile generation algorithms
Note: The SPiiPlusSC-HP installation package is not hosted on the ACS website. Customers: please contact the ACS Support team for access to this file.
- Controller Axes: 2, 4, 8, 16, 32, 64 or 128
- Host PC Applications Communication: TCP/IP, Shared RAM
- Max EtherCAT Cycle Rate: 5kHz
- Mounting: Embedded in PC (Run-time license on USB dongle required)
- Support for Windows and Linux OS
Reduce application development effort with these and other ACS capabilities
Motion Profile Generation
Increase machine throughput & accuracy with advanced profile generation algorithms
Motion-to-Process Synchronization
Increase machine throughput and resolution with events and high-speed I/O synchronized to motion
SpiiPlus Platform
The Universal Control Platform for Precision Motion Systems
The SPiiPlus Platform is an EtherCAT-based control platform consisting of motion controllers, servo drives, interfaces, and I/O built to meet the needs of OEM engineering teams developing equipment with precision motion control systems.
