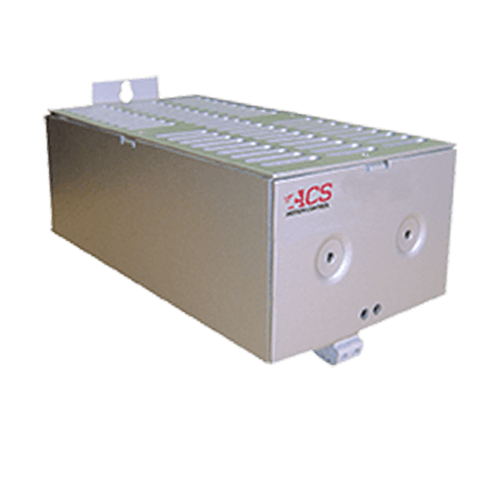

MC4U-REGEN-600
Shunt Regeneration Module
Motion control applications with large, moving loads can generate more energy during deceleration than the drive can safely dissipate internally. In such cases, a passive regeneration resistor, such as the MC4U-REGEN-600, can connect to the drive to dissipate the excess energy.
- Resistance: 26 Ohms
- Max Continuous Power Rating: 600W
- Dimensions (WxDxH): 114 x 221 x 113 mm
